Floorplan - 2015 Coachmen RV Catalina 333RETS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- List Price: $14,900
-
Sleeps 3
-
3 Slides
-
Rear EntertainmentFront Bedroom
-
36ft Long
-
7,881 lbs
-
Truffle, Camel, Fawn

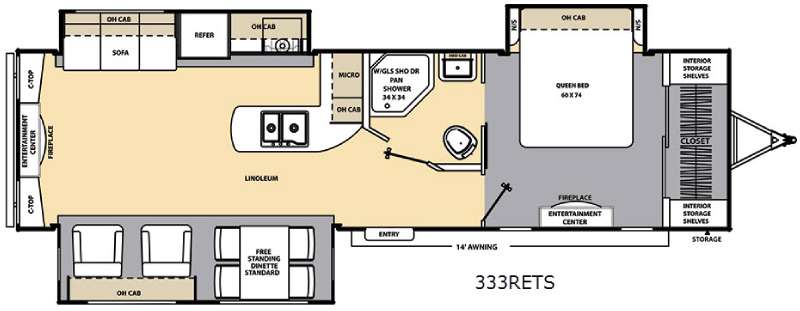

333RETS Floorplan
Specifications
Sleeps | 3 | Slides | 3 |
Length | 35 ft 10 in | Ext Width | 8 ft |
Ext Height | 11 ft 1 in | Int Height | 6 ft 9 in |
Interior Color | Truffle, Camel, Fawn | Hitch Weight | 800 lbs |
GVWR | 10500 lbs | Dry Weight | 7881 lbs |
Cargo Capacity | 2619 lbs | Fresh Water Capacity | 46 gals |
Grey Water Capacity | 40 gals | Black Water Capacity | 30 gals |
Furnace BTU | 30000 btu |
Description
This Coachmen Catalina travel trailer 333RETS features a rear entertainment center, triple slides, and plenty of space to enjoy your time away from home.
Step inside and see the bath straight ahead. It features an angled shower with glass shower door, a toilet, and a sink with medicine cabinet. There are two entry doors for easy access from within the bedroom as well as from the main living area.
The front bedroom features a queen size slide out bed with nightstands. There is a full front wall wardrobe with sliding doors, plus interior storage shelves on either end. There is also a entertainment center opposite the bed with a cozy fireplace below!
Head back toward the rear of this unit and see a wide open concept kitchen and living space with dual opposing slides. There is a slide out free standing dinette and two lounge chairs with overhead cabinets to the left of the entry door.
The rear wall features a full entertainment center with counter-top space along the rear wall, and cabinets above and below, plus a fireplace below the TV area.
Opposite the door side find a slide out sofa, a refrigerator, and a three burner range. There is also a L-shaped counter with a double sink, microwave oven, and plenty of counter space for food prep and overhead cabinets for storage.
There is also exterior storage up front, a 14' awning, and so much more.
Features
- Cambered Structural Steel I-Beam Frame (w/ full width out riggers)
- 3/8" Fully Decked Walk-On Roof
- Residential In-Floor Ducted Heat (N/A 213BH, 223FB, 273BH)
- One-Piece Seamless Walkable Roof
- Radius Entry Steps
- 5/8" Tongue & Groove Plywood Floor Decking
- R-7 Fiberglass Insulation in Sidewalls, Roof & Floor
- Silver E-Coat Maintenance Free Wheels
- G-20 Tinted Windows
- Rain Gutters w/Molded Downspouts
- Pearl .024" Aluminum Exterior Skin w/.030" Skirt Metal
- Painted Bumper w/Drain Hose Carrier and End Caps
- Radius-Cornered Fiberglass Entrance Door
- Roto-Cast Holding Tanks
- Flush Mount Baggage Doors that are Lockable and Radius Cornered
- Polished Aluminum Fender Skirts
- Self-Adjusting Brakes
- 110V GFCI Protected Exterior Receptacle
- 30 amp Electrical Service w/Deluxe 110V 45 amp Power Converter
- City Water Hookup
- Rear Vision Camera Prep
- Large pot & pan drawer
- Under-bed storage, bed lifts easily on 2 gas struts
- 2 Shirt closets with mirrors
- Fireplace at the base of the entertainment center (STANDARD 243RBS, 283RBKS, 293RKS, 303RLS, 323BHDS, 323TSQB, 343QBDS)
- Standard Fireplace at the base of the entertainment center and in the bedroom (333RETS only)
- AM/FM radio with CD player, iPod and MP3 dock
- Residential in-floor ducted heat (N/A- 213BH)
- Cable/TV hook-up in front bedroom (N/A- 213BH)
- 81” Living room ceiling height
- 2 full-length night stands w/ recepts
- Congoleum linoleum flooring
- 30K BTU auto-ignition furnace with wall thermostat (20K BTU 213BH)
- Grace Cherry stained wood cabinets
- 12V demand water pump
- Decorative glass in living room cabinets
- Systems monitor panel
- Jack knife convertible sofa with bolster cushions
- Shower curtain with curved shower track
- Neo-angle shower with glass doors (STANDARD 243RBS, 253RKS, 263RLS, 283RBKS, 293RKS, 303RLS, 333BHKS, 333RETS, 343QBDS)
- Hard Valance window treatment with lambrequin
- Large dinette tabletop with marine grade pedestal
- Marine toilet with foot flush
- Full size Medicine cabinet w/ mirror
- Bathroom exhaust fan
- Single piece thermofoil countertop with seamless edge
- Double door refer w/ reversible insert
- High rise faucet w/ large 60/40 double bowl sink
- Gas/electric double door refer
- 3-Burner range w/ 9,000 BTU Superburner™
- Screwed and glued cabinet construction with pocket board solid lumber core stiles
- Easy-View extra large picture window at dinette
- Silverware drawer
- Solid bedroom and bunk room doors (per floorplan)
- 13.5K BTU A/C
- 6 gallon gas/electric DSI water heater
- Metal drawer guides in kitchen
- Radial tires
- Superlube™ axles
- ABS tub/shower surround
- 20lb LP bottles w/ ABS cover
- Decorative backsplash in kitchen
- Microwave
- Patio awning with LED backlight
- Aluminum fender skirts
- Residential quilted bedspread
- Stab jacks (4)
- Water heater by-pass winterization kit
- Continu-us™ TV antenna with RG-6 coax cabling and satellite prep
- Power Electric Awning with Wall Mounted LED Lights
- Power Tongue Jack with LED Hitch Light
- Multi Media Sound System w/DVD and CD radio with USB
- 32" Flat Screen TV
- Swing Arm TV Bracket
- Marine Grade Exterior Speakers
- Stainless Steel Range with Oven IPO 3 Burner Cooktop
- Outside Shower w/ Hot & Cold Controls
- Front Diamond Plate Stone Guard
- Rear Vision Camera Prep (Camera sold separately)
- TRA Gold Certification
- Power pack (power awning & power tongue jack)
- 32” flat screen TV
- Enclosed and heated underbelly (NA - 213BH, 223FB, 273BH)
- 13.5K BTU ducted A/C
- 15K BTU ducted A/C
- Multi Media Sound System with CD/DVD player, iPod and MP3 docking
- Swing arm TV bracket
- 50 amp service with second A/C prep (293QBCK, 303KDS, 323BHDS, 323TSQB, 333BHKS, 333RETS, 343QBDS)
- 50 amp service with second A/C (293QBCK, 303KDS, 323BHDS, 323TSQB, 333BHKS, 333RETS, 343QBDS)
- Free-standing table w/ 4 chairs (N/A- U-shaped dinette models STANDARD 333RETS)
- Stainless steel range with oven IPO 3 burner cooktop
- Hide-a-bed sofa (N/A- 253RKS, 273BH, 273TBS) (STANDARD 283RBKS, 333RETS)
- Kitchen sink covers
- Outside shower
- Bar stools (Recommended - 243RBS, 293DDS)
- Skylight above tub/shower
- Spare tire w/tire carrier & cover
- Outside marine-grade speaker
- Full size exterior camp kitchen (273BH, 303KDS, 323BHDS, 333BHKS)
- Pull out camp kitchen (273BH, 273DBS, 303FQB) (STANDARD 293QBCK)
- Front diamond plate (mandatory)
- Full wall w/pocket door (Available on 223BH, 273BH)
- Two (2) 30 lb LP tanks with ABS cover
See us for a complete list of feature and available options!
